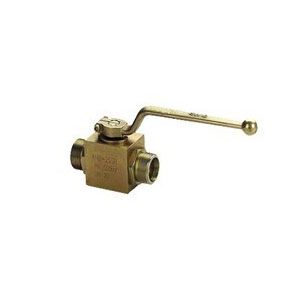

KHB(BKH)、KHM(MKH)系列高压球阀
型号说明
①系列代号：KHB（BKH）系列、KHM（MKH）系列
②连接代号：M**、G**、**LR、**SR、PT**、NPT**
③阀体材料：1-钢、2-不锈钢
④球体材料：1-钢、2-黄铜、3-不锈钢
⑤工作温度：1、-25～＋100℃2、-30～＋170℃
⑥其他密封：2-丁晴橡胶、4-氟橡胶
⑦手柄情势：01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
⑧设计序号：由生产商定
⑨外观处理：空白-磷化、G-电镀黄锌
尺寸表
| 简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 |
| KHB-M16×1.5 | 500 | 06 | 06 | 11 | M16×1.5 | 11 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-M22×1.5 | 500 | 08 | 08 | 16 | M22×1.5 | 12 | 76 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-M27×1.5 | 500 | 10 | 10 | 20 | M27×1.5 | 12 | 76 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-M30×1.5 | 400 | 16 | 15 | 24 | M30×1.5 | 13 | 84 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-M36×2 | 315 | 20 | 20 | 30 | M36×2 | 15 | 103 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| KHB-M42×2 | 315 | 25 | 23 | 35 | M42×2 | 18 | 116 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| KHB-M52×2 | 315 | 32 | 32 | 40 | M52×2 | 20 | 149 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
| KHB-M60×2 | 315 | 40 | 38 | 45 | M60×2 | 22 | 174 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 |
| 简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 |
| KHB-G1/8 | 500 | 04 | 06 | ／ | G1/8 | 10 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-G1/4 | 500 | 06 | 06 | ／ | G1/4 | 14 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-G3/8 | 500 | 10 | 10 | ／ | G3/8 | 14 | 72 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-G1/2 | 500 | 13 | 12 | ／ | G1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 10 | 09 | 30 |
| KHB-G1/2 | 400 | 16 | 15 | ／ | G1/2 | 16 | 83 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-G3/4 | 315 | 20 | 20 | ／ | G3/4 | 18 | 95 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| KHB-G1 | 315 | 25 | 25 | ／ | G1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| KHB-G 11/4 | 315 | 32 | 32 | ／ | G 11/4 | 22 | 110 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
| KHB-G 11/2 | 315 | 40 | 38 | ／ | G 11/2 | 24 | 130 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 |
| KHB-G2 | 315 | 50 | 48 | ／ | G2 | 26 | 140 | 100 | 105 | 131 | 52.5 | 112 | 12 | 14 | 80 |
| 简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 |
| KHB-NPT1/8 | 500 | 04 | 06 | ／ | NPT1/8 | 10 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-NPT1/4 | 500 | 06 | 06 | ／ | NPT1/4 | 14 | 69 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-NPT3/8 | 500 | 10 | 10 | ／ | NPT3/8 | 14 | 72 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-NPT1/2 | 500 | 13 | 12 | ／ | NPT1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 10 | 09 | 30 |
| KHB-NPT1/2 | 400 | 16 | 15 | ／ | NPT1/2 | 16 | 83 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-NPT3/4 | 315 | 20 | 20 | ／ | NPT3/4 | 18 | 95 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| KHB-NPT1 | 315 | 25 | 25 | ／ | NPT1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| KHB-NPT 11/4 | 315 | 32 | 32 | ／ | NPT 11/4 | 22 | 110 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
| KHB-NPT 11/2 | 315 | 40 | 38 | ／ | NPT 11/2 | 24 | 130 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 |
| KHB-NPT2 | 315 | 50 | 48 | ／ | NPT2 | 26 | 140 | 100 | 105 | 131 | 52.5 | 112 | 12 | 14 | 80 |
| 简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 |
| KHB-06LR | 500 | 04 | 04 | 06 | M12×1.5 | 10 | 67 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-08LR | 500 | 06 | 06 | 08 | M14×1.5 | 10 | 67 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-10LR | 500 | 08 | 08 | 10 | M16×1.5 | 11 | 74 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-12LR | 500 | 10 | 10 | 12 | M18×1.5 | 11 | 74 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-15LR | 500 | 13 | 12 | 15 | M22×1.5 | 12 | 82 | 48 | 35 | 53 | 17 | 40 | 10 | 09 | 30 |
| KHB-15LR | 500 | 12 | 12 | 15 | M22×1.5 | 12 | 82 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-18LR | 500 | 13 | 12 | 18 | M26×1.5 | 12 | 82 | 48 | 35 | 53 | 17 | 40 | 10 | 09 | 30 |
| KHB-18LR | 400 | 16 | 15 | 18 | M26×1.5 | 12 | 82 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-22LR | 315 | 20 | 19 | 22 | M30×2 | 14 | 101 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| KHB-28LR | 315 | 25 | 24 | 28 | M36×2 | 14 | 108 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| KHB-35LR | 315 | 32 | 30 | 35 | M45×2 | 16 | 141 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
| KHB-42LR | 315 | 40 | 36 | 42 | M52×2 | 16 | 162 | 91 | 85 | 112 | 42.5 | 95 | 12 | 14 | 70 |
| 简略型号 | PN(bar) | DN | LW | RA | d1 | i | L | L1 | B | H | h1 | h2 | h3 | SW1 | SW2 |
| KHB-08SR | 500 | 04 | 05 | 08 | M16×1.5 | 12 | 73 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-10SR | 500 | 06 | 06 | 10 | M18×1.5 | 12 | 73 | 40 | 26 | 45 | 13.5 | 33 | 8 | 09 | 22 |
| KHB-12SR | 500 | 08 | 08 | 12 | M20×1.5 | 12 | 76 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-14SR | 500 | 10 | 10 | 14 | M22×1.5 | 14 | 80 | 42 | 32 | 49 | 16 | 36 | 10 | 09 | 27 |
| KHB-16SR | 500 | 13 | 12 | 16 | M24×1.5 | 14 | 86 | 48 | 35 | 53 | 17 | 40 | 10 | 09 | 30 |
| KHB-16SR | 500 | 12 | 12 | 16 | M24×1.5 | 14 | 86 | 48 | 38 | 61 | 19 | 45 | 11 | 09 | 32 |
| KHB-20SR | 500 | 13 | 12 | 20 | M30×2 | 16 | 90 | 48 | 35 | 53 | 17 | 40 | 10 | 09 | 30 |
| KHB-20SR | 400 | 16 | 15 | 20 | M30×2 | 16 | 90 | 48 | 38 | 61 | 19 | 45 | , 11 | , , 09 | 32 |
| KHB-25SR | 315 | 20 | 20 | 25 | M36×2 | 18 | 109 | 60 | 48 | 70 | 25 | 55 | 11 | 12 | 41 |
| KHB-30SR | 315 | 25 | 25 | 30 | M42×2 | 20 | 120 | 65 | 57 | 79 | 28.5 | 64 | 11 | 12 | 50 |
| KHB-38SR | 315 | 32 | 30 | 38 | M52×2 | 22 | 153 | 84 | 75 | 101 | 37.5 | 84 | 12 | 14 | 60 |
